TPMS
Tire Pressure Monitoring System
Powered By deelife

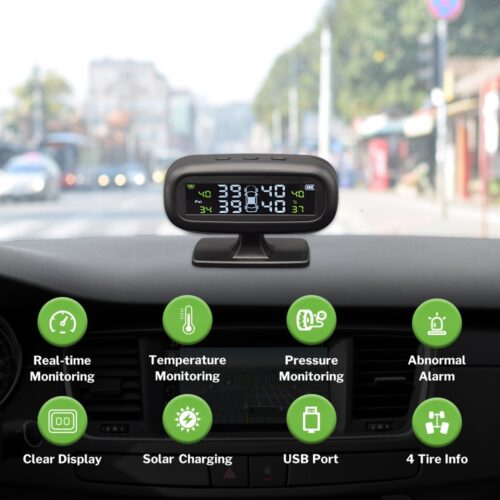

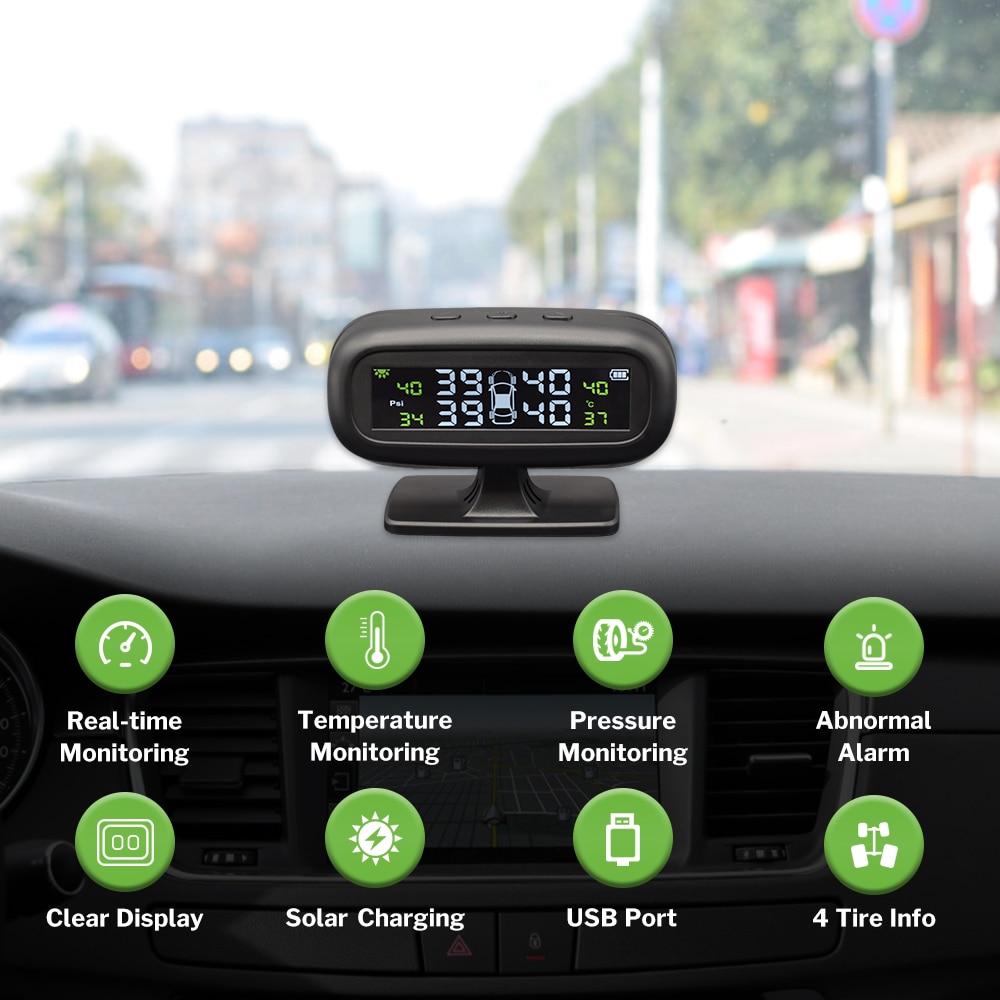

Main Features
• Real-time monitoring of tire pressure & temperature

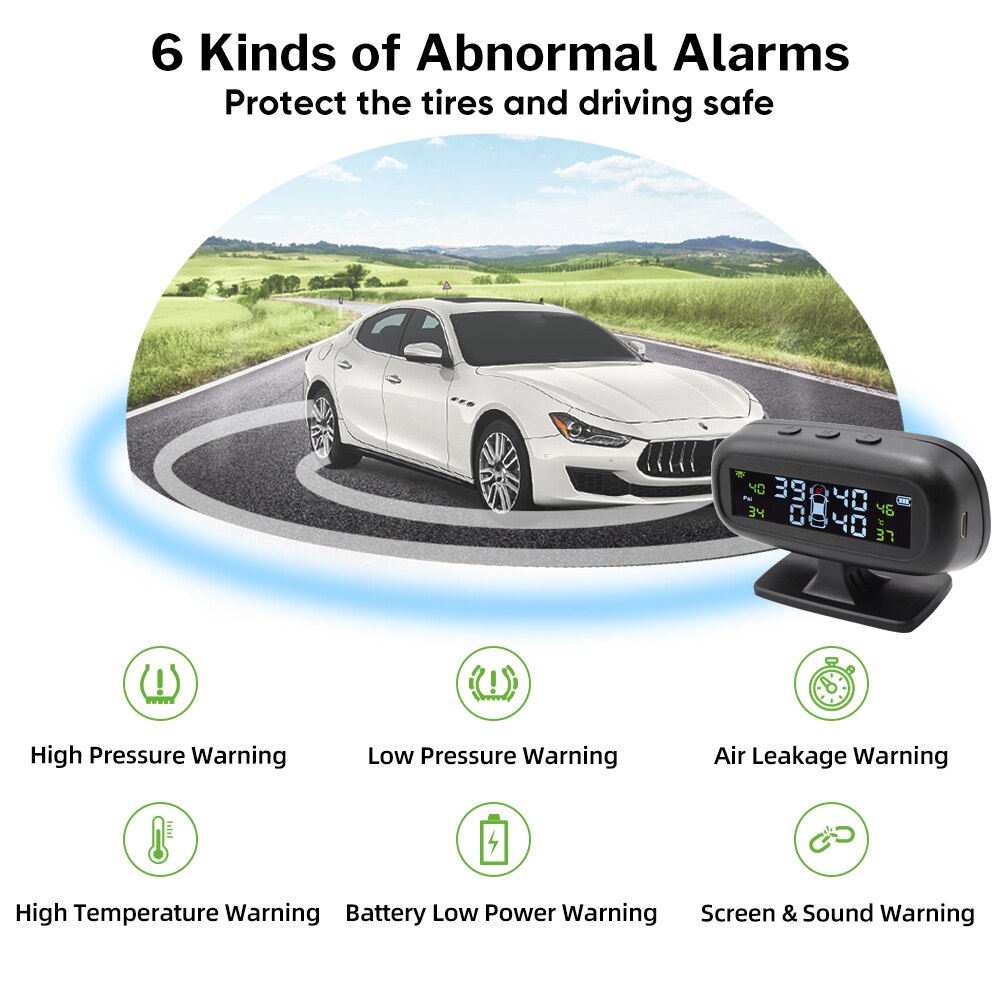

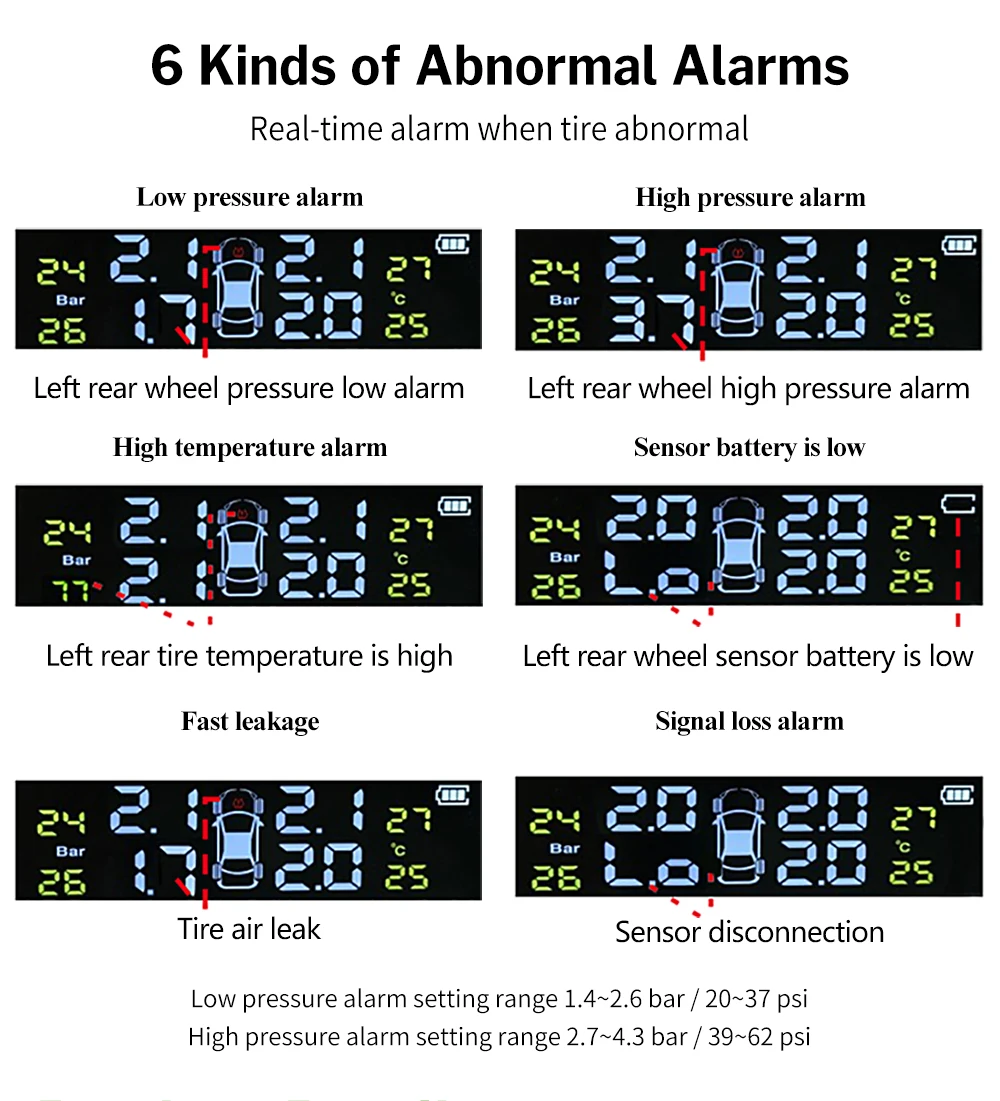

• 6 kinds of abnormal alarms to protect the tires and driving safe
• Dual Warning Hint : Display on Screen & Sound Alarm

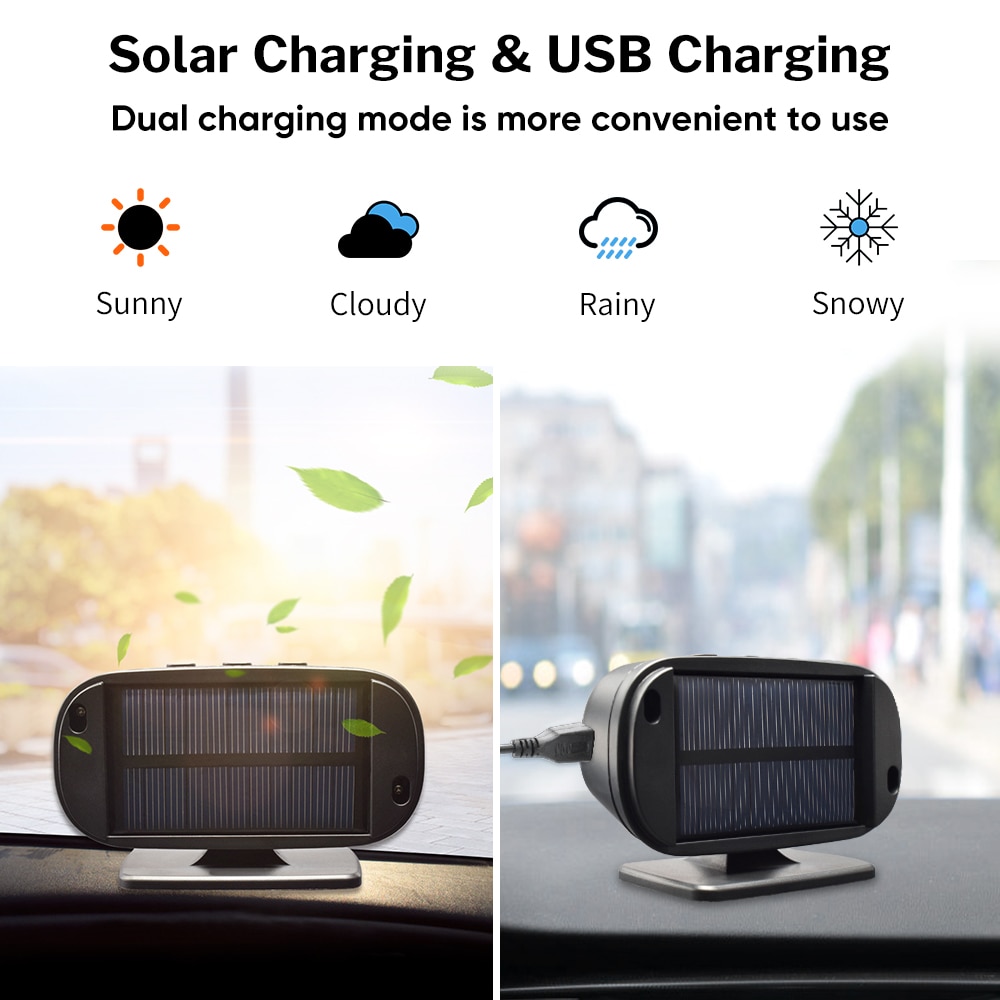

• Solar Power Charging – Usually charge once per 6 months via USB port

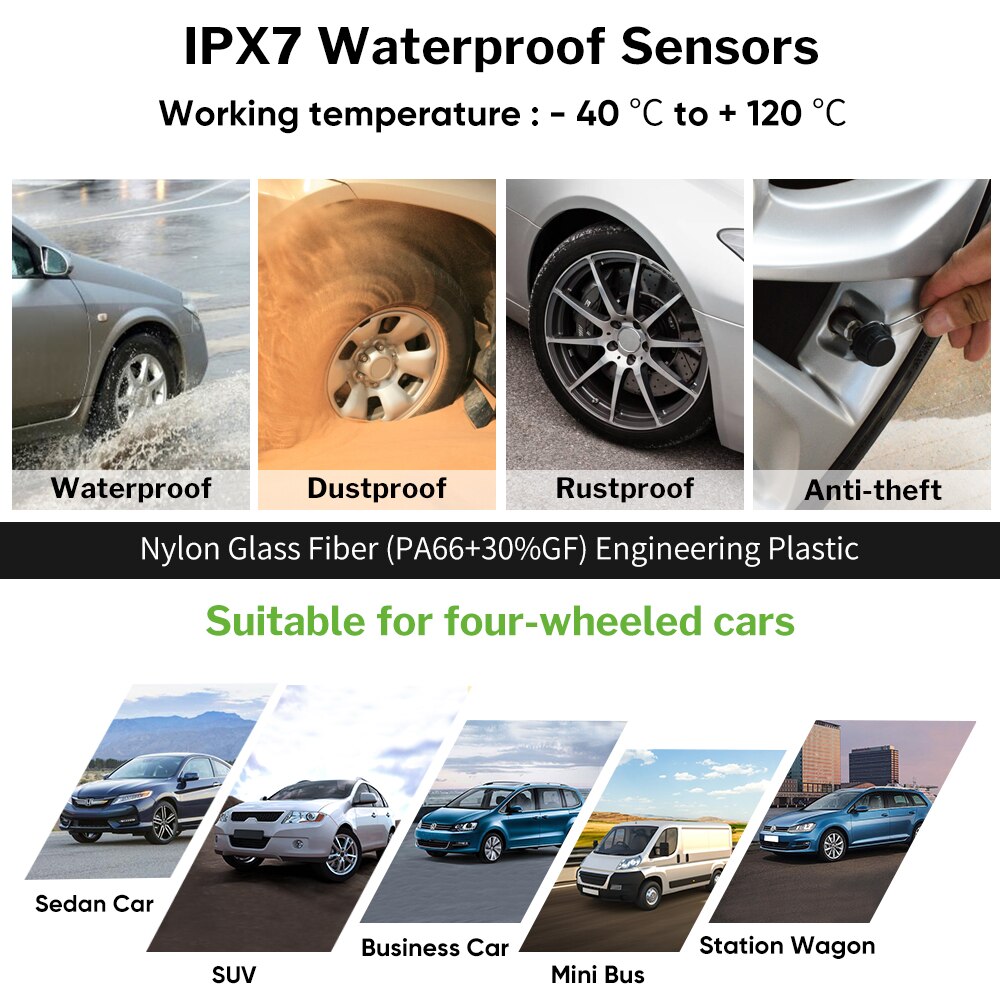

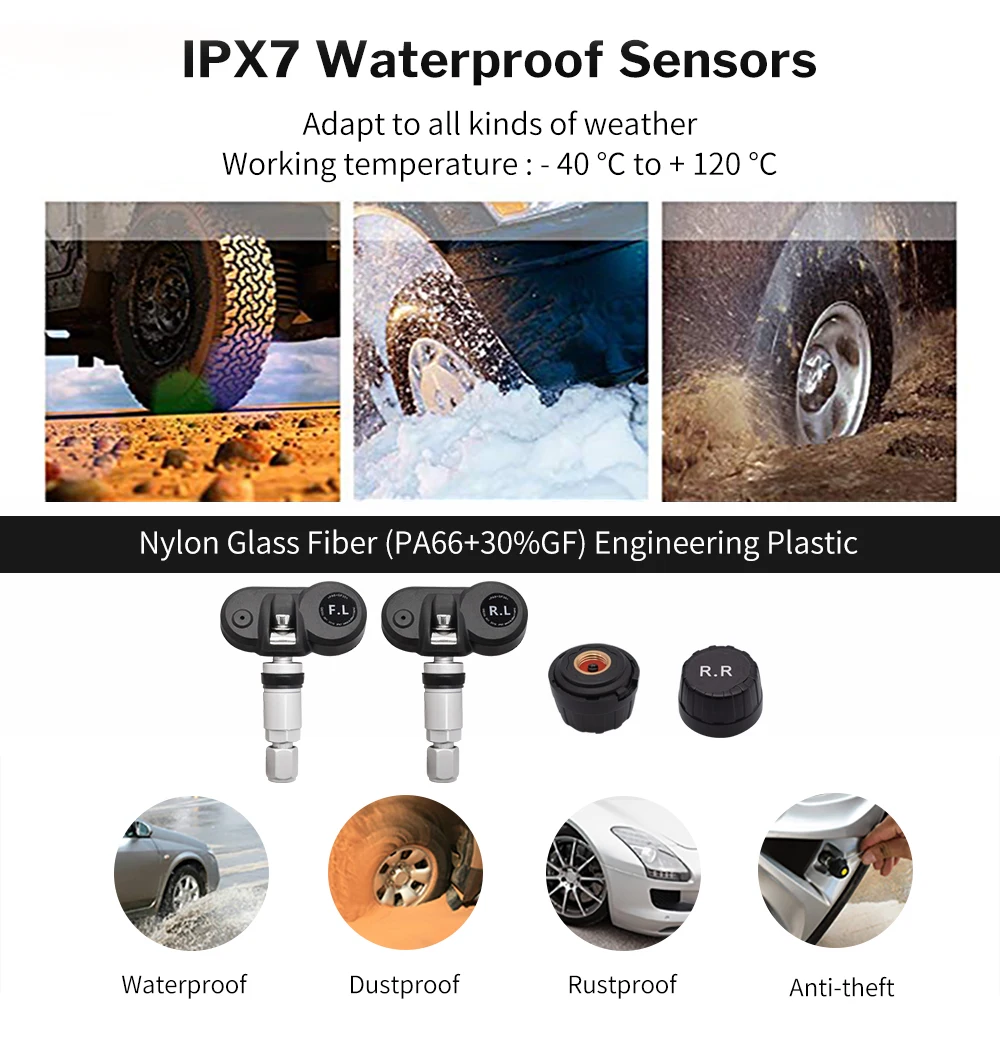

• IPX7 Waterproof Level for the 4 tire pressure sensors, Anti-rust & Durable
• Automatic Sleep , When the car without vibration for 5 minutes
• Vibration Wake-Up Function , when you open the car door, wake-up and power on

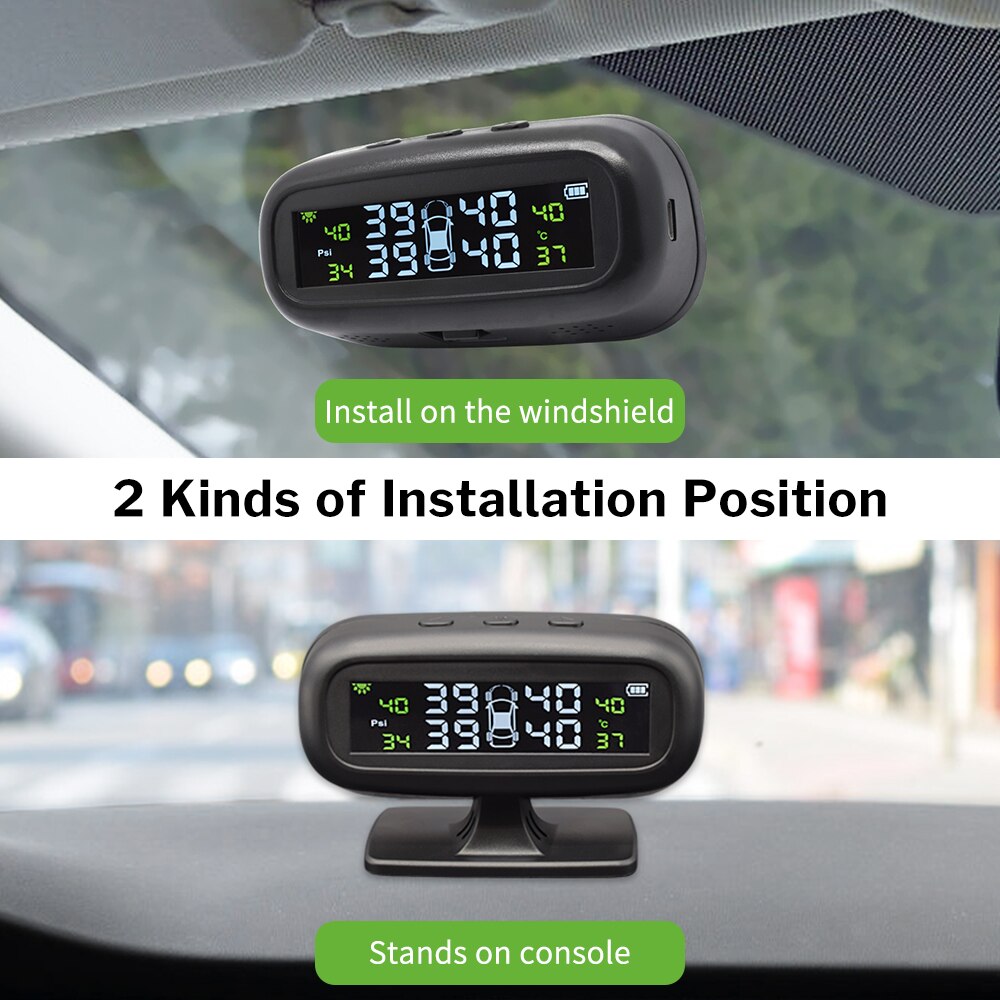

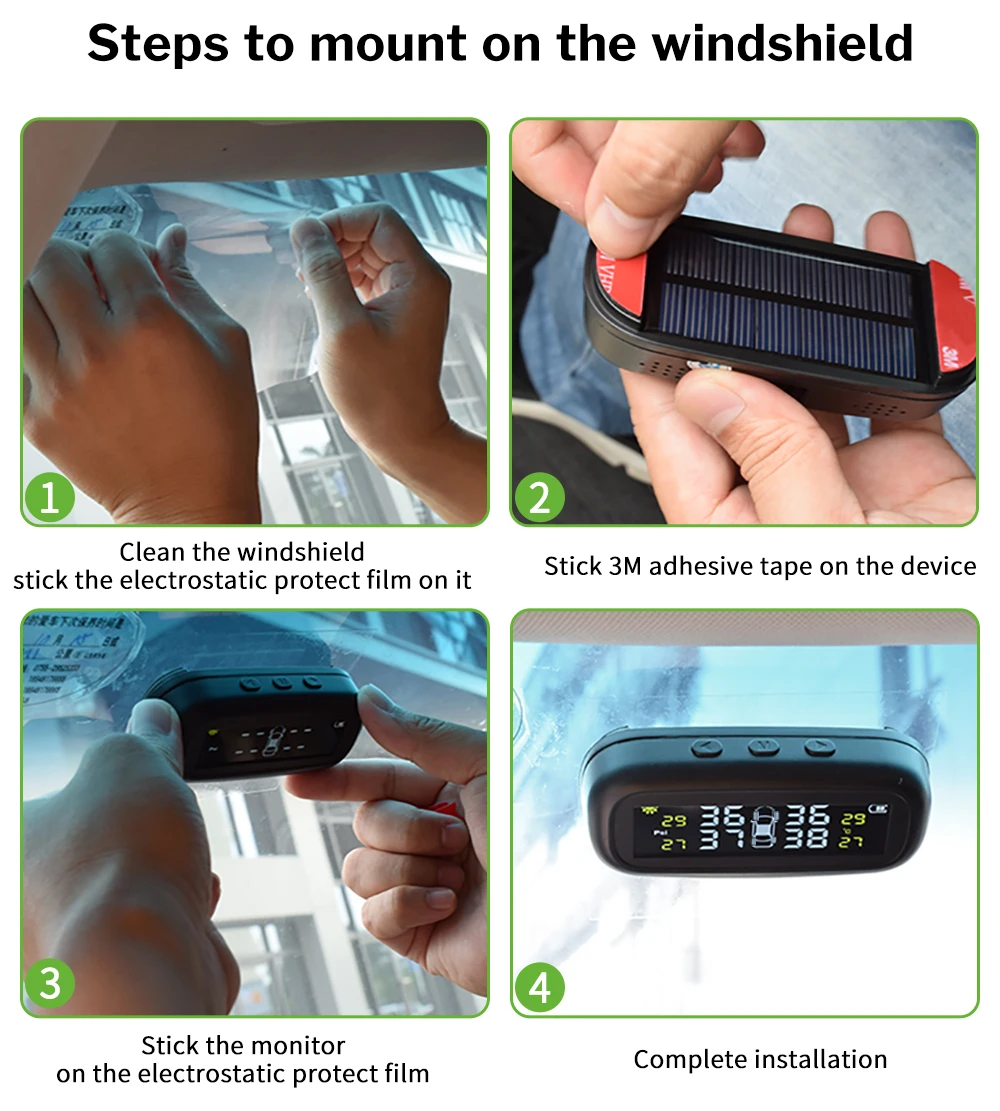

• Can be placed on the car console or mount on the windshield
Benefit of TPMS
1.TPMS ensures proper tire pressure, which is necessary to ensure vehicle safety, handling, comfortable driving, and tire life.
2. Accurate tire pressure can reduce fuel consumption / CO2 emissions
3. Extend tire life by up to 30%

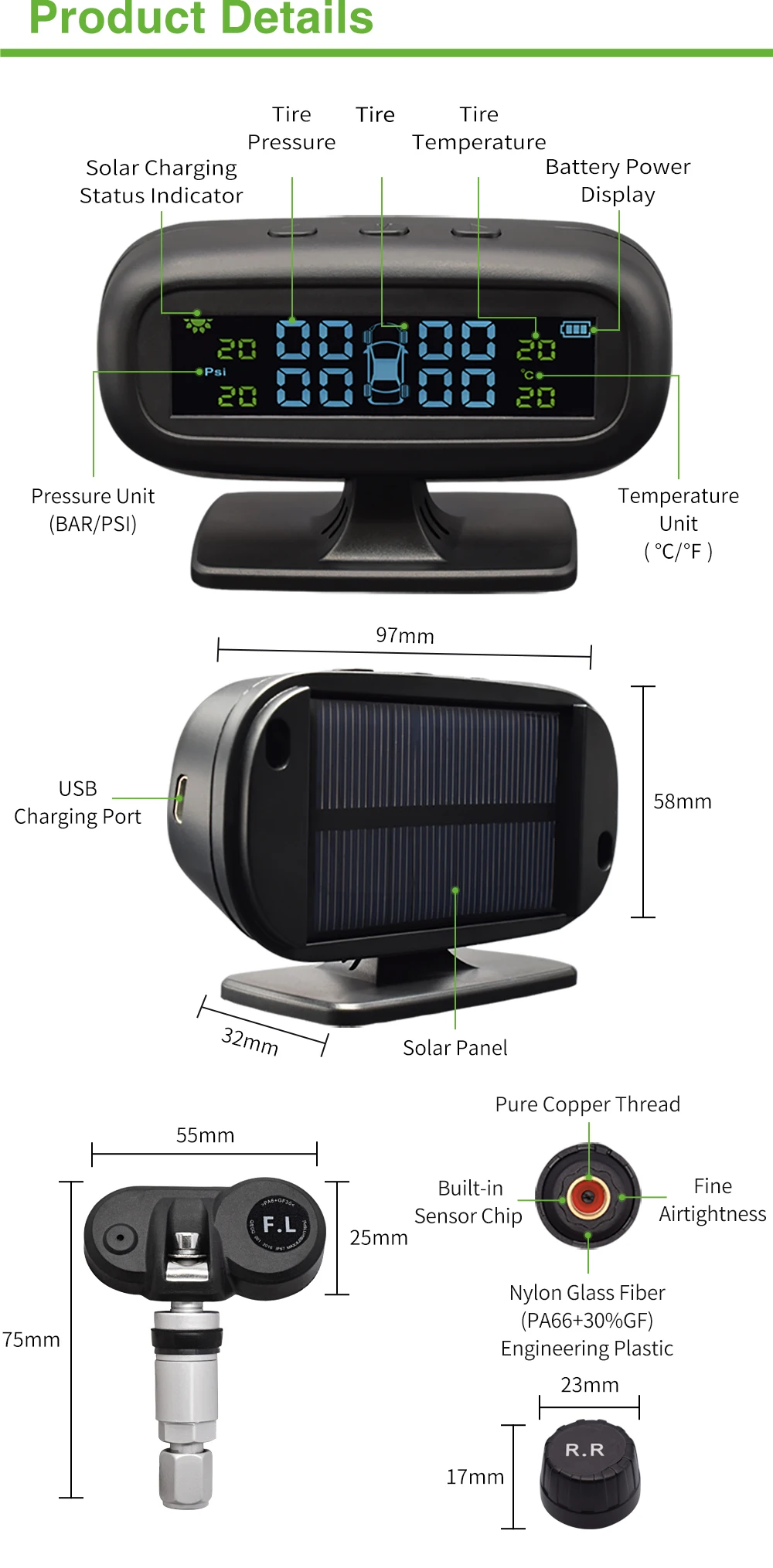

Parameter
Monitor x1
• Solar Power Charging: up to 15% conversion efficiency
• Solar Panel: Polycrystalline silicon material
• Wireless Frequency: 433.92MHz
• Built-in Battery: 400 mAh / 3.7V
• LED Display: 2.7 inch
• Material: ABS + PC
• Working Temperature: – 20℃ ~ +80℃
• Charging Socket: Micro USB / DC 5V
• Weight: 71g

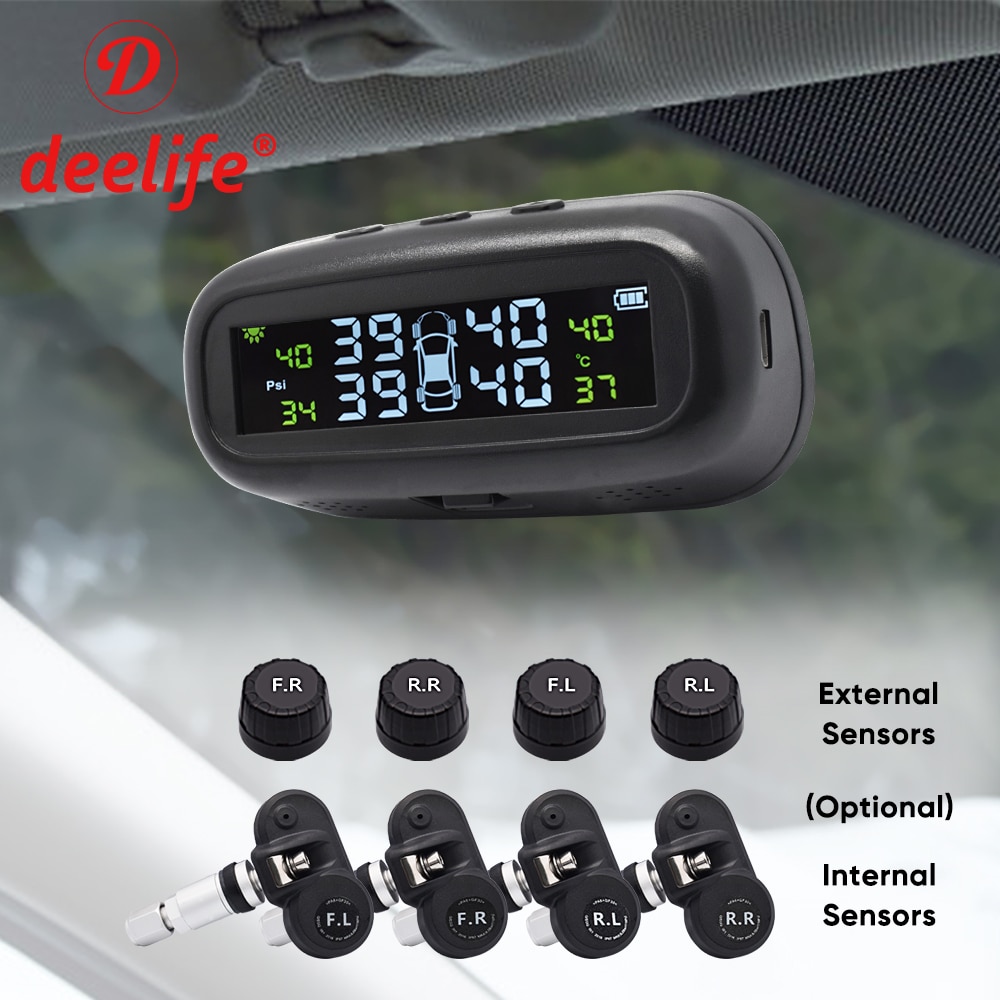

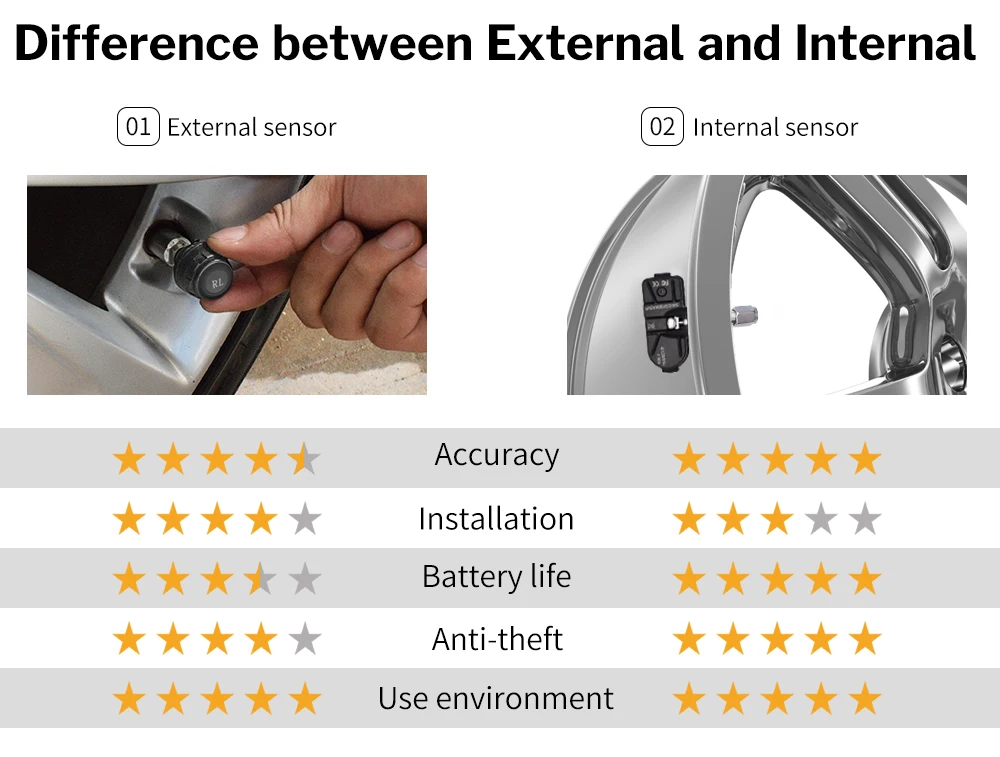

External Sensors x4 ( Optional )
• Battery Model: CR1632 ( Replaceable )
• Working Temperature: – 40 ℃ ~ + 120 ℃
• Working Pressure Range: 0 ~ 3.5 bar / 0 ~ 50.76 psi
• Pressure Accuracy: ±1.5 psi / ± 0.1 bar
• Temperature Accuracy: ± 3℃
• Wireless F requency: 433.92MHz
• With Anti-theft Design
• Material: Nylon Glass Fiber (PA66+30%GF) Engineering Plastic
• Weight: 11g
• Size: 23(phi) *18 (H) mm
• Battery Life: 1-2 years

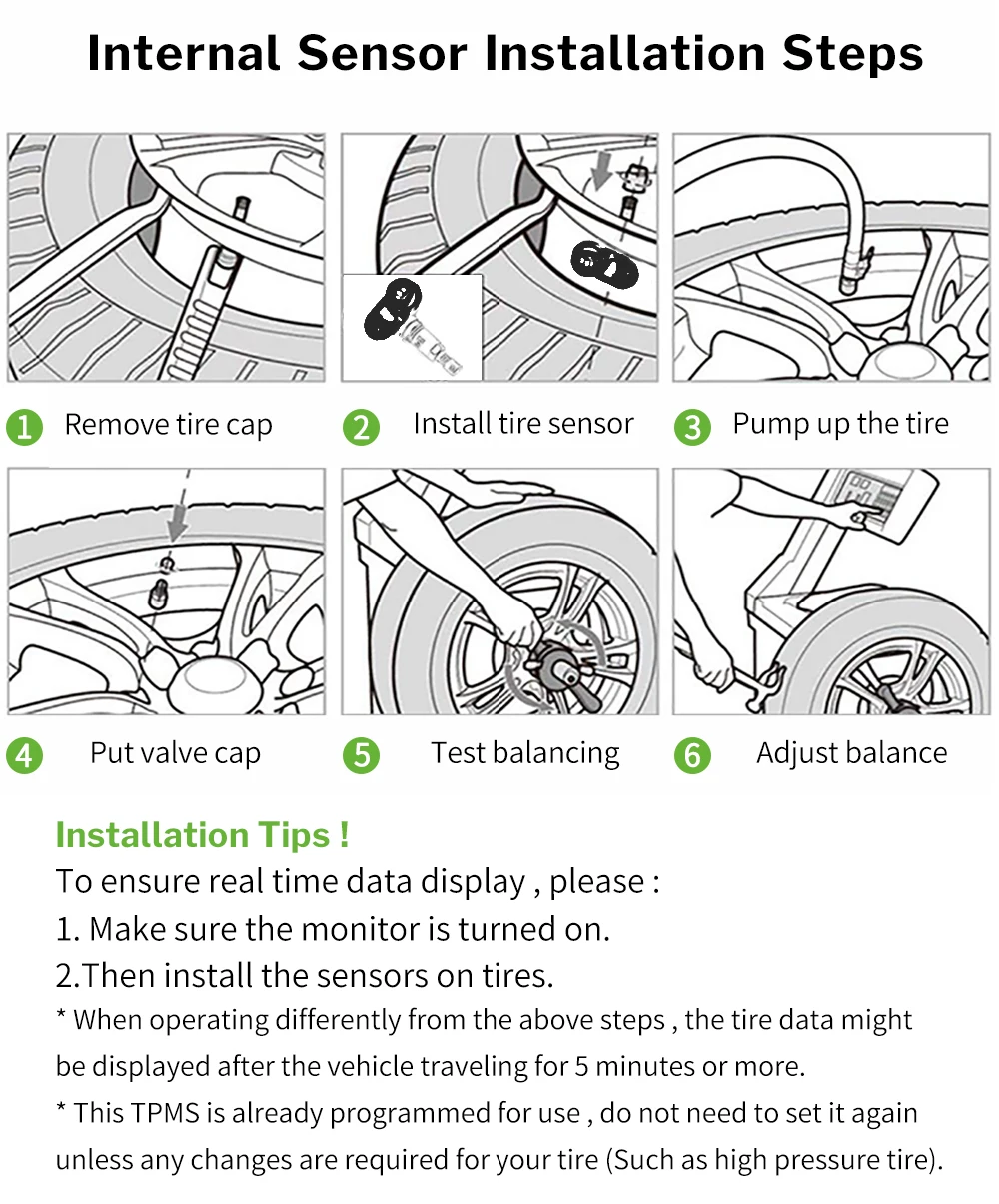

Internal Sensors x4 ( Optional )
• Battery Model: CR2032 ( Not Replaceable )
• Working Temperature: – 40 ℃ ~ + 120 ℃
• Working Pressure Range: 0 ~ 3.5 bar / 0 ~ 50.76 psi
• Pressure Accuracy: ± 1.5 psi / ± 0.1 bar
• Temperature Accuracy: ± 3℃
• Wireless Frequency: 433.92MHz
• With Anti-theft Design
• Material: Nylon Glass Fiber (PA66+30%GF) Engineering Plastic
• Weight: 39g
• Battery Life: 2-3 years

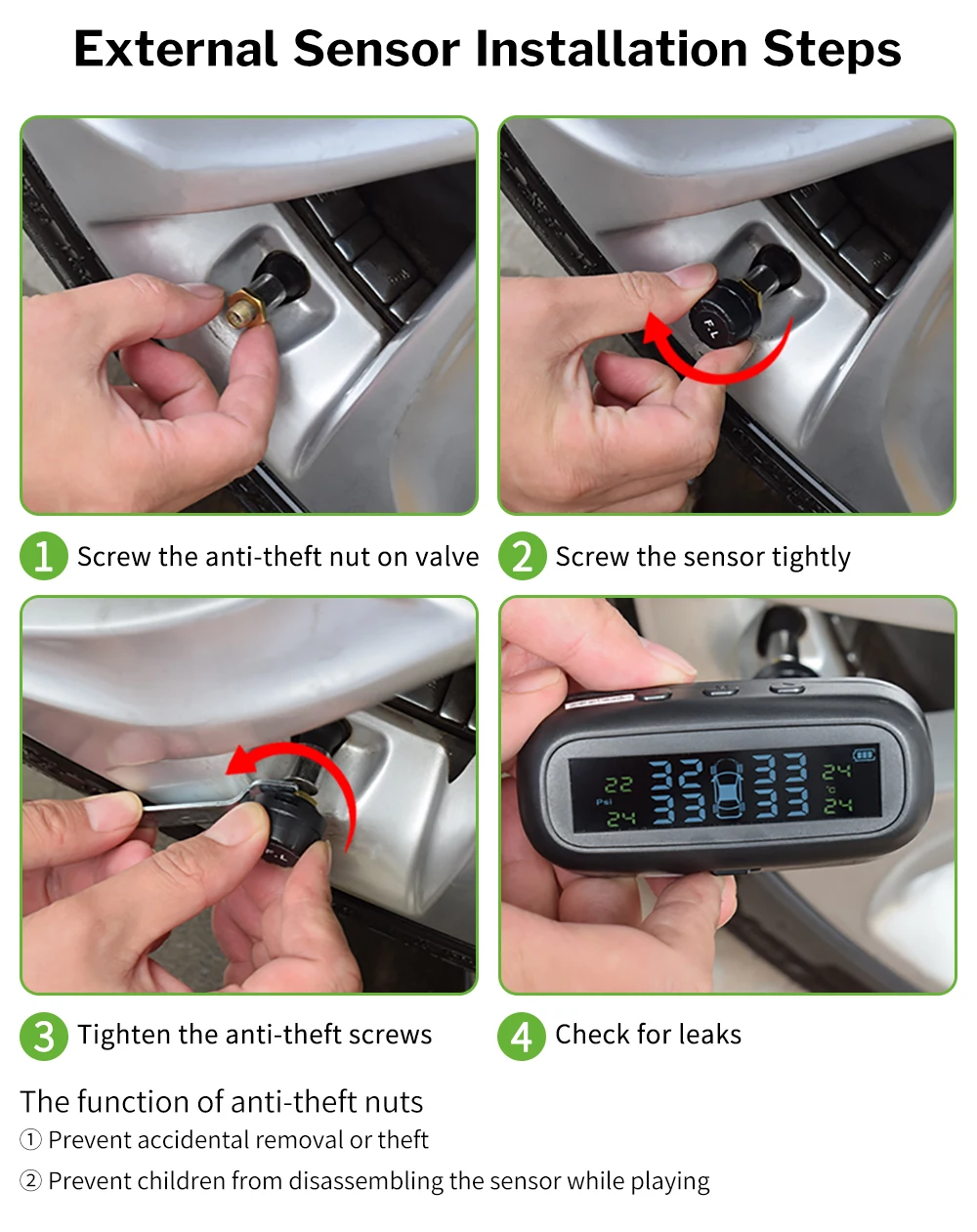

Attention
For the anti-theft nuts, please pay attention for the 2 steps,
1. Tighten the Sensor first on the valve, if not Tighten, the anti-theft nuts can not protect your sensors.
2. Tighten the nuts by the wrench, then check it by your hands for the lock performance.

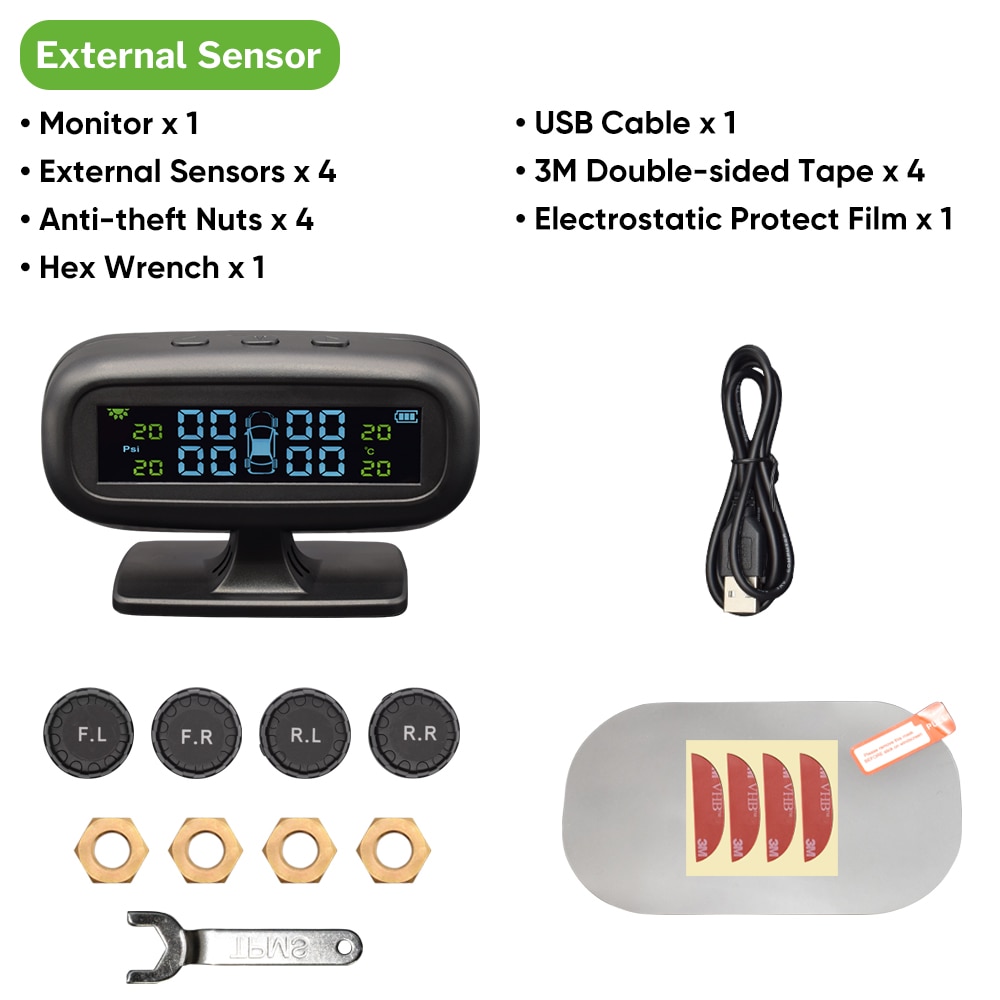

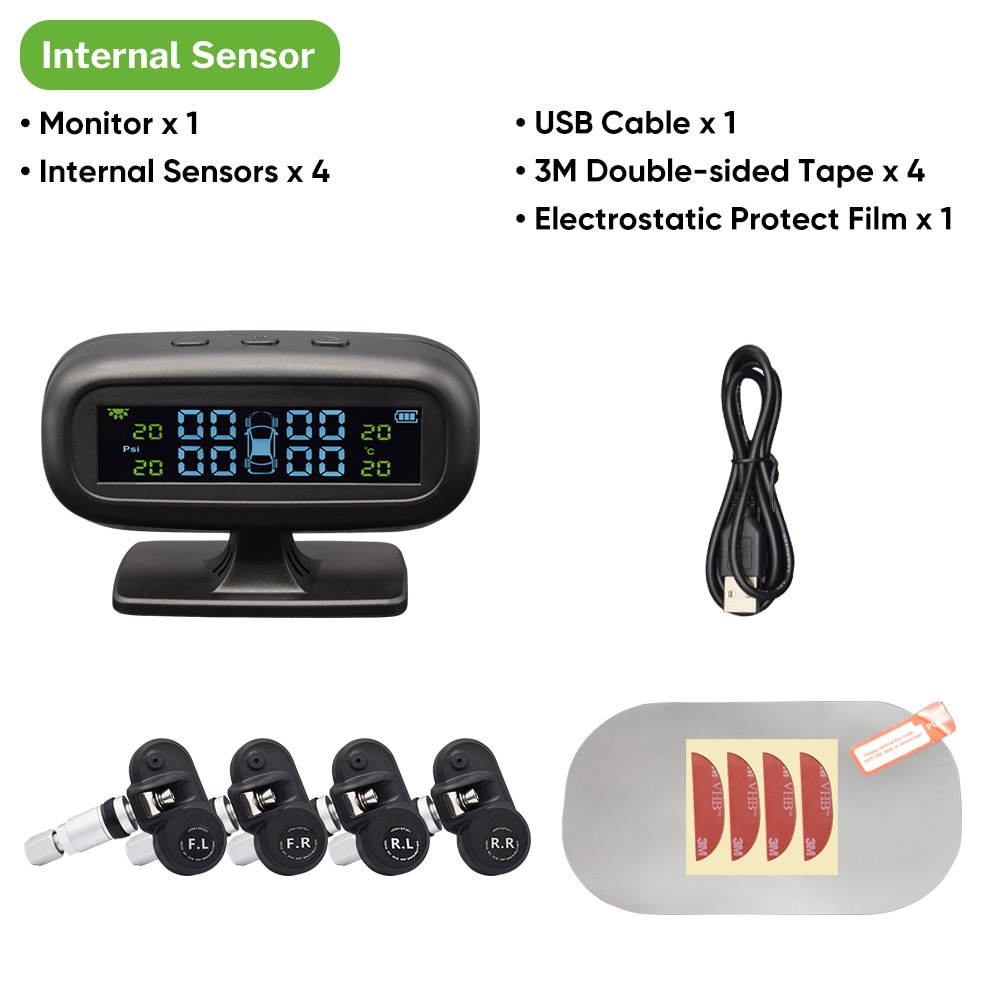

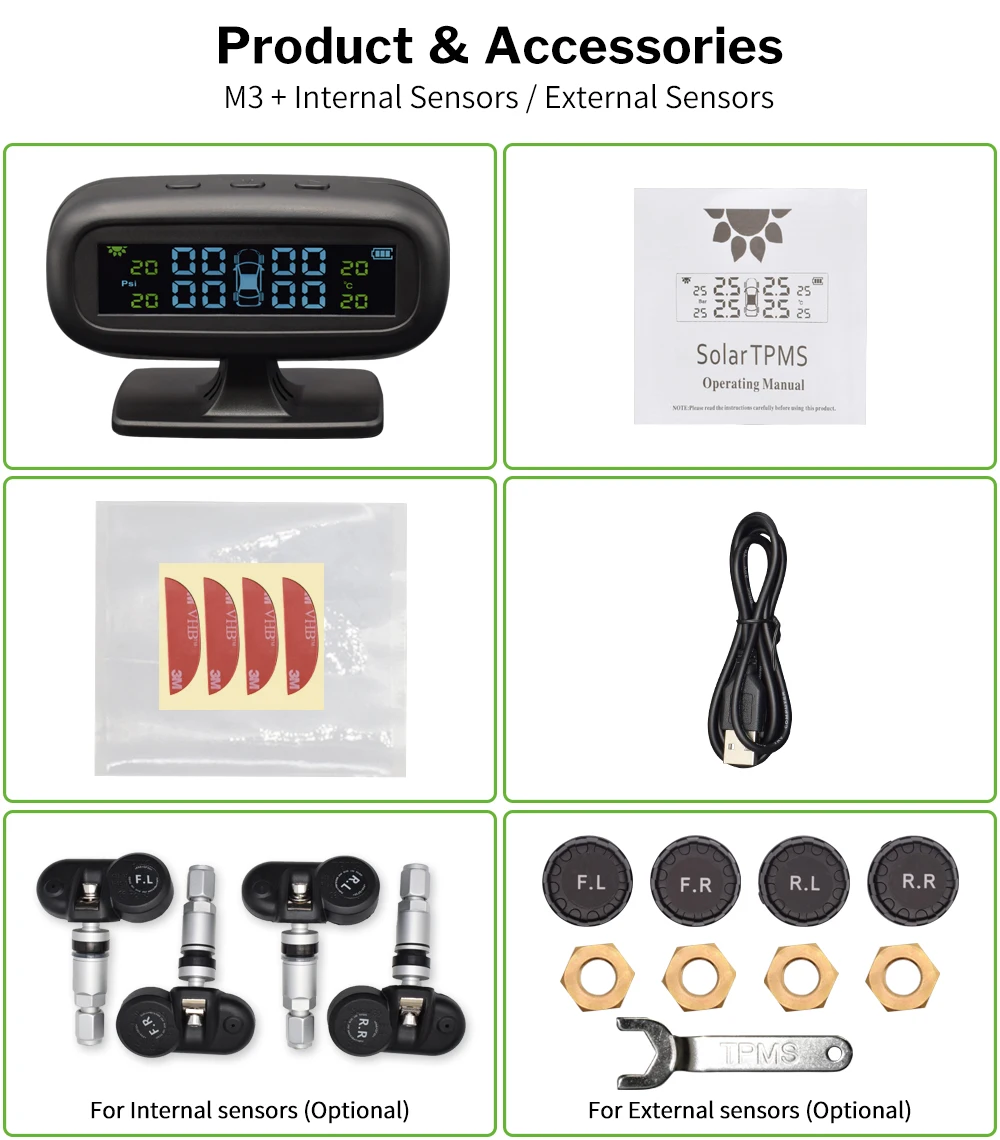

Package Include
• 1 x Monitor
• 4 x External Sensors ( Optional )
• 4 x Internal Sensors( Optional )
• 4 x Anti-theft Nuts (For External)
• 1 x Hex Wrench (For External)
• 1 x Anti-slip Pad
• 4 x 3M Double-sided Tape
• 1 x English User Manual
• 1 x USB Cable for Charging
• 1 x Electrostatic Protect Film
